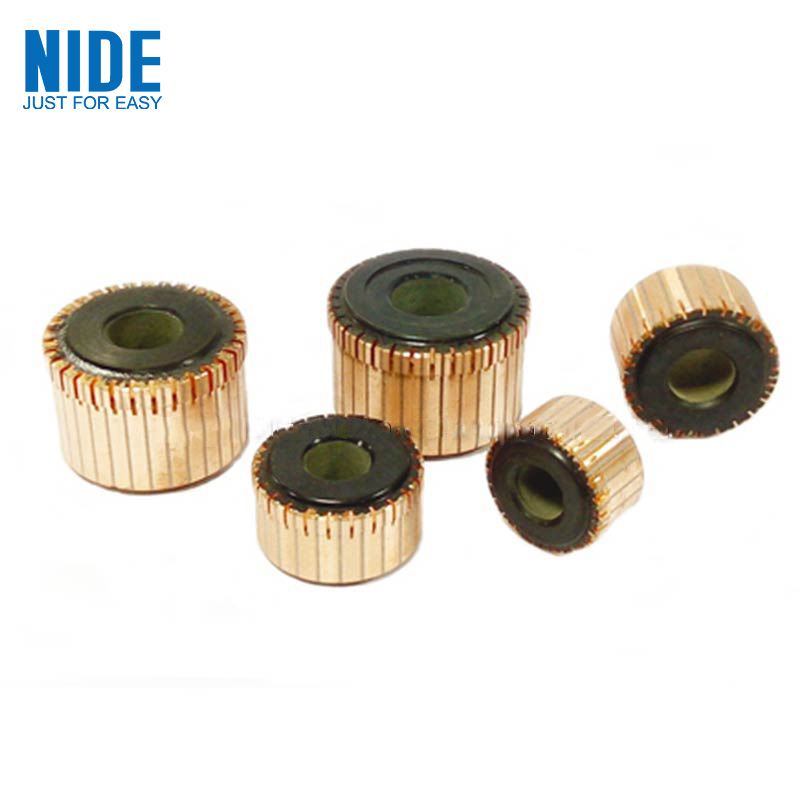

Single moto Commutator maka AC moto

The moto commutator kwesịrị ekwesị Single AC moto. NIDE commutator na-ekpuchi oke dị iche iche, ihe karịrị ụdị 1200 dị iche iche nke commutator, gụnyere ụdị nko, ụdị riser, ụdị shei, ụdị planar, sitere na OD 4mm ruo OD 150mm. A na-etinyekarị ndị na-eme njem na ụlọ ọrụ ụgbọ ala, ngwá ọrụ ọkụ, ngwa ụlọ, na ndị ọzọ moto.Ị nwere ike ijide n'aka ịzụta Single Motor Commutator Maka AC Motor site na ụlọ ọrụ anyị na anyị ga-enye gị ọrụ kacha mma mgbe ire ere na nnyefe oge.

Zipu ajụjụ

Nkọwa ngwaahịa

Single moto commutator maka AC moto

1.Product Okwu Mmalite

The Single moto commutator maka AC moto bụ nke afụ, cracks, ma ọ bụ burr n'elu.

Nnwale voltaji: mmanya ruo mmanya na 500V, 1s, mmanya ga-agba na 1500V, 1 min, na-enweghị mmebi ma ọ bụ na-egbu maramara.

Nnwale ịgba ọsọ: mee ule ntụgharị maka onye na-agagharị agagharị n'okpuru 140 centigrade, 5000RPM, 3min. Mgbe ulechara, oke ngbanwe nke dayameta mpụta bụ 0.015, nke mmanya na mmanya bụ 0.005.

Nguzogide mkpuchi: 500V, karịa 50MÎ©

2.Product Parameter (Nkọwapụta)

Akụkụ Mba.	O.D (D)	I.D (d)	Mkpokọta O D (D1)	Ụlọ mmanya (N)	Ogologo mmanya (L1)	Ngụkọta ogologo (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17
